Install CentOS 7.3 on ESXi 6.5 (VM console problem??)

f:id:daichi703n:20170121174757p:plain

Install CeontOS 7.3 on VMware vSphere ESXi 6.5.

Use the free (Essential) version of ESXi. Unfortunately, since vCenter can not be used at no charge, it is a standalone configuration. For the guest OS use the Linux distribution CentOS. Since CentOS is open source, it can build environment all free.

Environment

Physical server: DELL PowerEdge T110 II (reviewed / purchased as following article)

en-designetwork.hatenablog.com

Hypervisor: VMware vSphere ESXi 6.5

Virtual server: CentOS 7.3

PC: Chromebook Acer C720

Web browser: Google Chrome

Install ESXi 6.5

Evaluation version is registered from MyVMware and downloaded. Because installation is like the wizard and there is no particular problem, omitting it.

www.vmware.com

Install CentOS 7.3

Download the ISO image from CentOS 'official. I use Minimal because I want to set up various things by myself.

Download CentOS

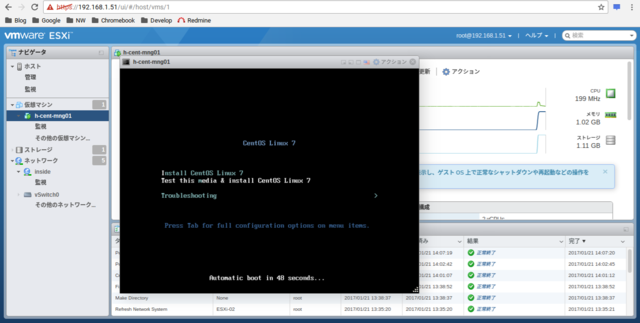

Mount the ISO image on the created virtual machine and start it. Although the console does not change much from the conventional one, ESXi 6.5 does not require the vSphere Client and can be managed from the Web with the vSphere Web Client. (Sorry in JP's figure)

f:id:daichi703n:20170121165449p:plain

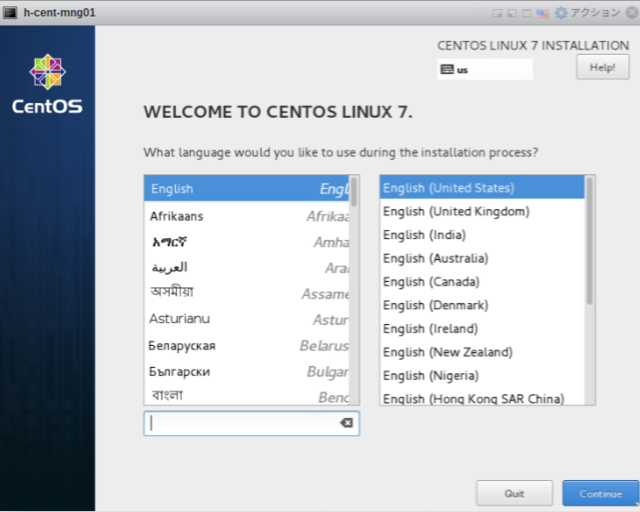

From here it is the normal CentOS setup.

f:id:daichi703n:20170121165755p:plain

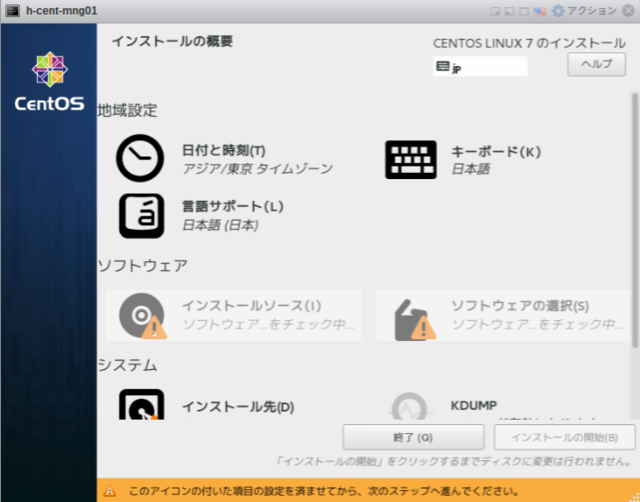

Respectively.

f:id:daichi703n:20170121165859p:plain

DISK setting · The network screen does not display well

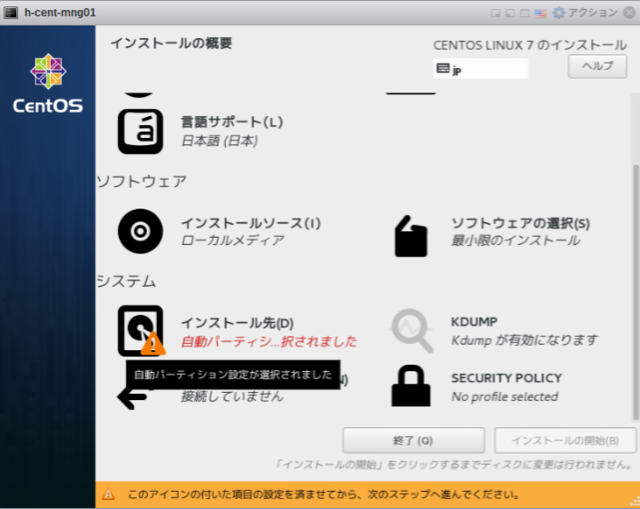

While setting up DISK, it seems that there is a problem that some of them are not displayed properly.

f:id:daichi703n:20170121165941p:plain

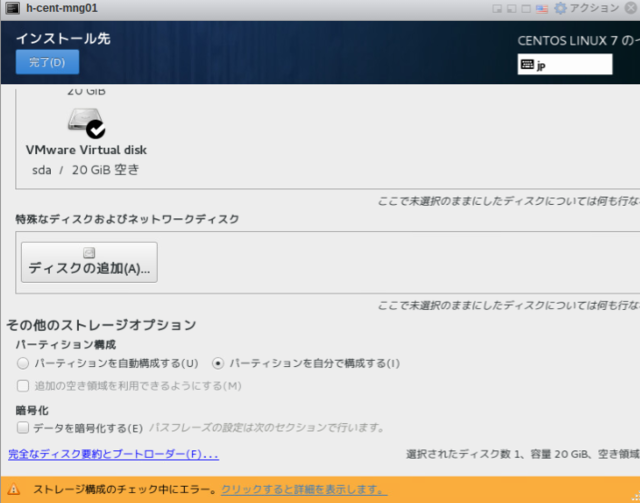

Scroll down and check "Make your partition yourself" and click "Done".

f:id:daichi703n:20170121170030p:plain

The right part of the screen is burned... Even if you widen the window, the horizontal display area does not spread...

It may be a problem of PC · Web browser ...

f:id:daichi703n:20170121170126p:plain

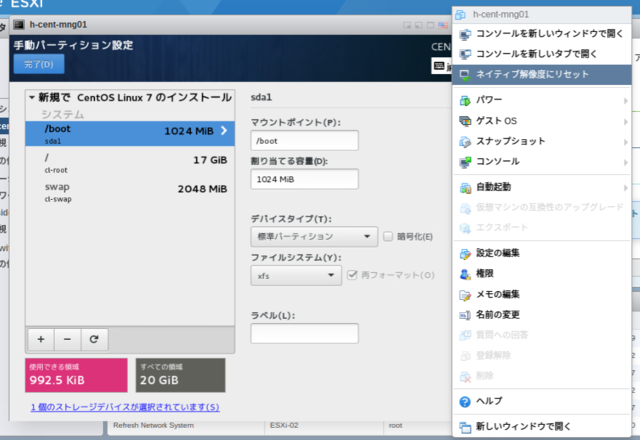

Even when trying to change the resolution from the upper gear action it has no effect...

f:id:daichi703n:20170121170240p:plain

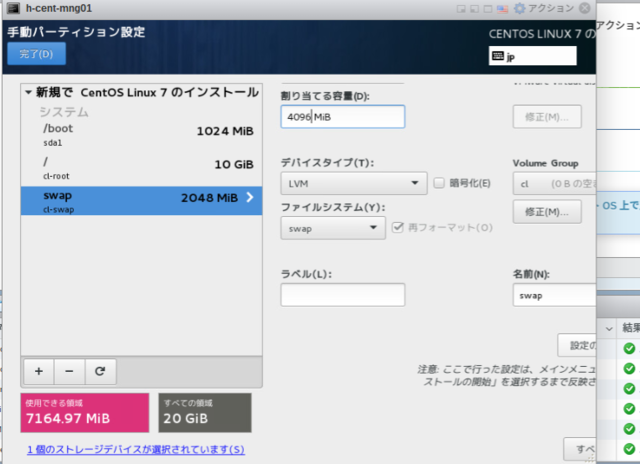

When you scroll down on the partition setting screen, there is a "setting..." button, so change is applied here.

f:id:daichi703n:20170121170752p:plain

On the network barely ON/OFF buttons are toggled but set button is not visible ... Although it is possible to skip the cursor well with Tab, it seems good to set nmtui/nmcli after setting the network.

f:id:daichi703n:20170121170919p:plain

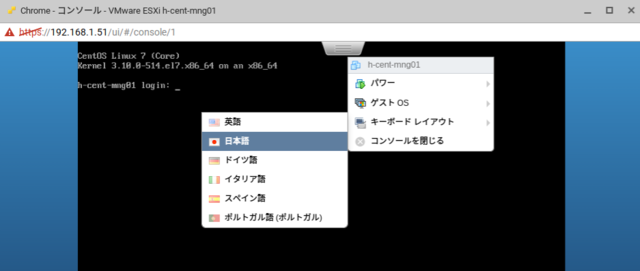

Note on key mapping

You can change key mapping from gear action. Unless it matches the language used here, unexpected symbols are entered when the symbol is used with a password or the like.

f:id:daichi703n:20170121173642p:plain

Conclusion - Install CentOS 7.3 on ESXi 6.5 (VM console problem??)

I installed CentOS 7.3 from VMware vSphere ESXi 6.5 Web Client. There seems to be a screen display problem on the console of the VM, but if it is only the initial installation, there is no problem.

It can be verified in a free and free virtual environment.


This Blog is English Version of my JP's.

Sorry if my English sentences are incorrect.
